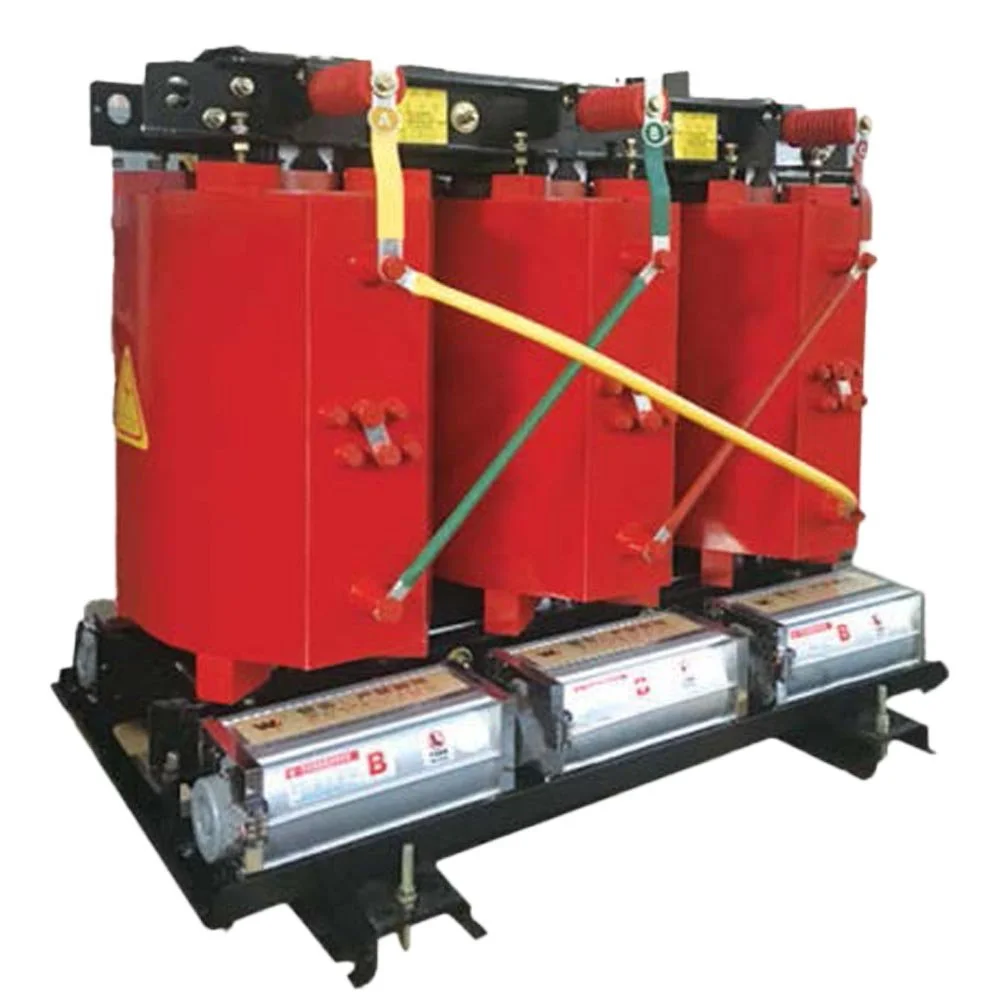

SC (B) Three-Winding Double-Split Epoxy Resin Cast Dry Type Step-up Transformer
This product is to meet the growing photovoltaic power requirements, 10kV-35kV dry-type transformers based on the digestion and absorption of foreign advanced technology combined with domestic demand self-developed products, small size, light weight, easy installation.
Features
This transformers is made using high-quality materials, advanced manufacturing and testing equipment according to strict production process. It is an electric strength, mechanical strength, heat-resistant high strength dry-type transformers. Product with high reliability, long life characteristics. Suitable for photovoltaic field. Depending on the use environment you can configure a different level of protection.
-
Environmentally Friendly
Transformer was in line with local environmental conditions such as ambient temperature and dust protection.
-
Temperature Sensor
The transformer equipped with a temperature sensor, this signal may be input to the inverter.
-
Practical Winding
For each inverter, there is a separate, isolated current of the secondary winding. The short-circuit voltage transformer primary winding and a secondary winding.
-
Rated Voltage
The wiring is in accordance with the system requirements. The rated voltage secondary winding and the inverter output voltage is consistent.
Ordering instructions:
1. Rated capacity.
2. High voltage rated voltage, tapping range.
3. Low voltage rated voltage (match with inverter).
4. Impedance voltage & split co-efficient.
5. The frequency and shell protection grade.
6. Other special requirements.
