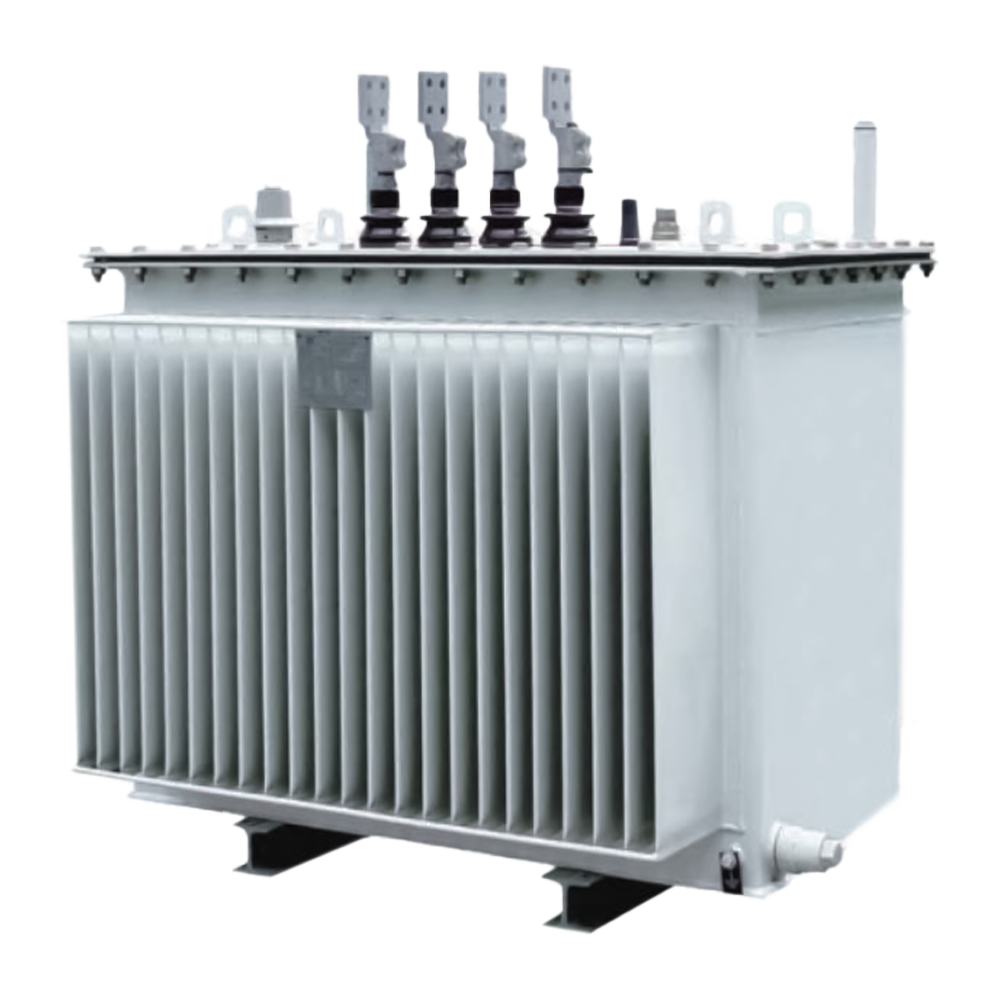

S(B) H-M Sealed Amorphous Alloy Distribution Transformer
The product is full-filled sealed, sealed with principle of power transformer. Based amorphous alloy elements are iron, nickel, cobalt, silicon, boron, carbon and other components is a soft isotropic materials, magnetic power is small. There is no domain wall movement impede structural defects, the thickness of very thin, only 0.001 inches, the corresponding filling factor smaller only 0.75 to 0.80.
Features
Resistivity is high, is the silicon steel plates 3 to 6 times, 5 times the hardness of the silicon steel, amorphous alloys are particularly sensitive to stress.
S(B)H-M series load loss products no-load loss in GB/T6451 based on the standard set of I values decreased by 70% implementation of standard JB/T10318 oil-immersed distribution transformer amorphous alloy core technical parameters and GB20050-2020 power transformer limited value of energy efficiency and energy efficiency level.
Technical Parameters
〰️
Technical Parameters 〰️
Models: (S(B)H15-M-30-2500/6-10) , (S(B)H16-M-30-2500/6-10), (S(B)H21-M-30-2500/6-10), (S(B)H25-M-30-2500/6-10)
*Note: The parameters are different for each model. If you have any questions about a specific model, kindly reach out to murat@ryantransformer.com
