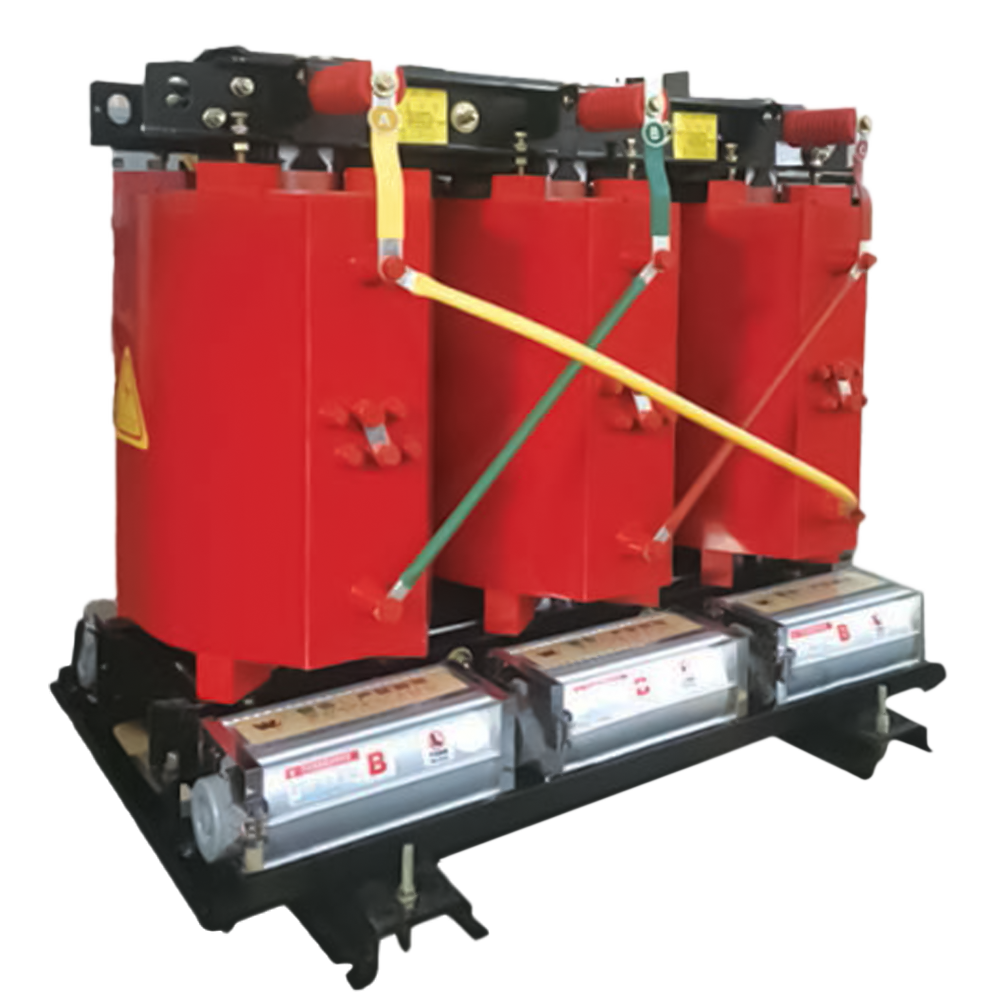

10kV Epoxy Resin Cast Dry Type Transformer
These transformers can be used as the upgrading of product of OIL IMMERSED distribution transformers in the best performance products, especially for urban power grids, high-rise buildings, business center, theaters, hospitals, hotels, tunnels, subway, wharves, airports, underground power station, laboratory, combined and other important place.
Features
SC(B) series power transformers for domestic early coil around the injection licensed product model certificate of low-noise, low-loss resin dry-type transformers. The advanced design, quality materials, scientific formulas, rigorous process and high standards of testing make our transformer unique.
-
Flame Resistant
With its anti-flaming, anti-explosion, it will not pollute the environment. Glass fiber coil winding coil such with self-extinguishing properties and will not produce electric arc for short-circuit, does not produce toxic or harmful gases in high temperature condition.
-
Cooling Coils
The resin inside and outside the coil is thin, heat dispersion is good. Cooling air is used air cool in nature (AN). For any degree of protection transformer, equip with air-cooled system (AF), in order to improve overload capacity of short-term, and ensure safe operation.
-
Protective Coating
The coil does not absorb moisture, core clamps have a special corrosion protection layer, 100%relative humidity and other harsh environment. Interrupt driving not remove tide treatment.
-
Affordable
There is no fire and explosion danger, and installed in the load center can be distributed and fully close to the power point, thus reducing line low cost and save the expensive facilities cost.
Copper Wire: The high voltage winding of copper wire, low voltage winding wound of copper foil, glass fiber mat is filled with wrapping, vacuum packing of the epoxy used without casting, curing to form a solid cylindrical overall, mechanical high strength, partial discharge of small, high reliability.
Fault Tolerant: Short circuit resistant and high level of lightning impulse.
Energy Efficient: It consumes lower energy and is maintenance-free.
Lightweight: Small volume, lightweight, small area, lower installation costs, no need to consider oil tank, fire protection and backup power, stand-by UPS.
