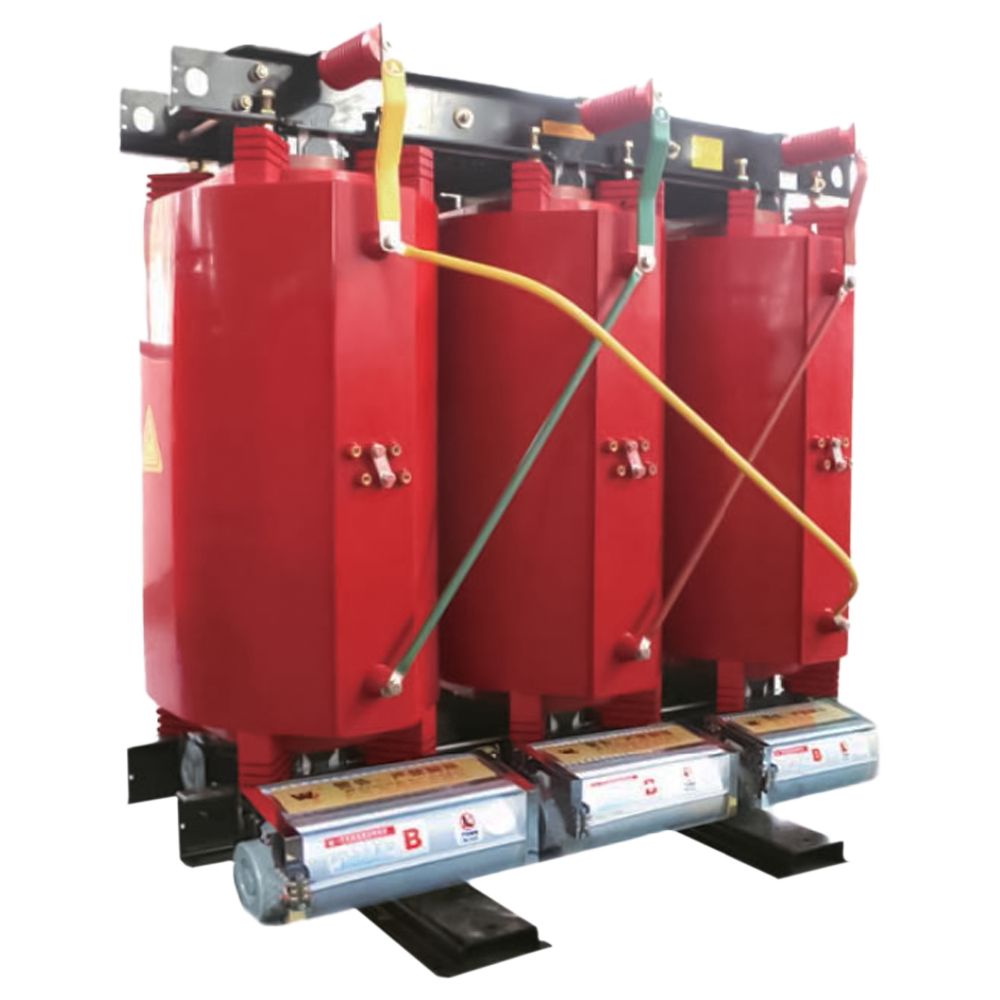

SC (B) H, SG (B) H Series Amorphous Alloy Dry Type Transformer
Our company utilizes the mature technical development design SC(B)H and SG(B)H series amorphous alloy dry type transformer, the performance is superior, product safe, reliable, environmental protection, but shoulders the center thoroughly, the adaption high density load modernization big urban development need. This product reduced the idling to lose, the load large scale loses, is now the world most advanced dry type transformer.
Features
20kV, 35kV electrical network power source reducing is directly the 400V power distribution power source or the 10kV electric transmission power source is the user power supply, because it has the remarkable merit, used for more and more many projects.
This product is flame-resistant, moisture-resistant, anti-crack and exempts merits and so on maintenance, and it is widely used in high-rise constructions, business centers, subways, airports, stations, the industry and mining enterprise and the power plants, suits especially in flammable, explosive and so on the fire protections the high place to install use.
SCB series 20kV level, 35kV level adjust the dehydration pressing type transformer without the excitation to be the low loss product, confirms to national standards GB/T1094.11, GB/T10228 and the IEC60076.11 request and following characteristics:
-
High Performance
High performance and low loss. This ferrite core becomes by the crystal-less alloy strip volume, uses the rectangular cross-section, three-phase five column structure, the idling loses compared to the ordinary dry transformer reduces 3/4, energy conservation effects is remarkable.
-
Flame Resistant
Being flame-resistant, explosion-proof, does not pollute the environment, fire protection rank is high. The noise level is low, volume is small, installment is simple, and exempts maintenance.
-
Affordable
The optimization secondary winding structure, improved the level the voltage and the electric capacity distribution, enhanced the product tolerance atmospheric over-voltage and switching surge impact ability greatly. It simultaneously improved the electric field distribution.
-
High Quality Materials
Selects the high quality silicon steel plate, simultaneously is large reduces the magnetic-flux density, reduces in the movement the silicon steel plate magnetostriction quantity, reduces the noise effectively.
Air Blower Cooling System: It may dispose warm controls the system and forced-air cooling installment, in the load over-sized time automatic start air blower cooling system, sharpens the equipment load ability effectively.
Effective Power Supply: The 35kV, 20kV power source enters directly uses electricity the center enhances the power supply effectively.
Compact & Affordable: Simplifies the 10kV power transformer link, causes the movement maintenance cost to reduce obviously.
Improved Electrical Transmission: Uses the high-pressured undercurrent to replace the low pressure big electric current electric transmission, reduces the line loss, reduces the line movement cost.
